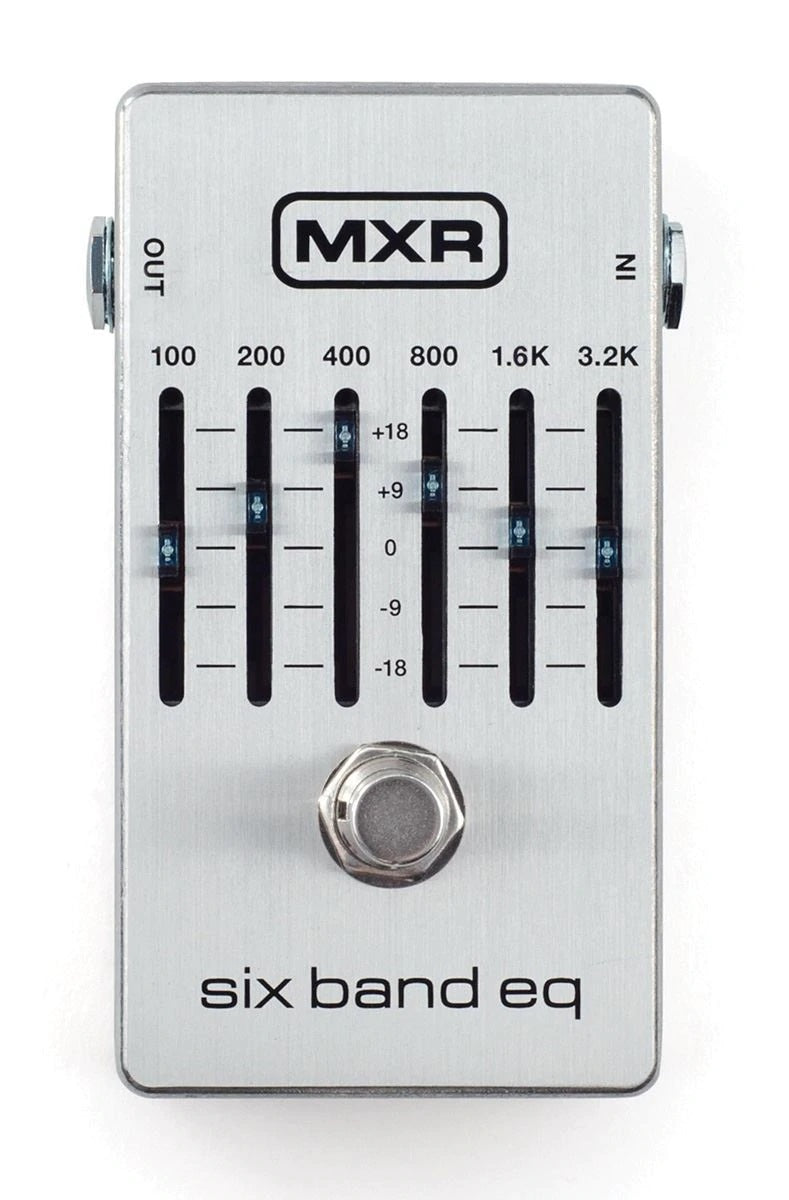

MXR 109S Six Band Equalizer
For your consideration, Garrett Park Guitars presents this MXR 109S Six Band Equalizer Pedal.
The MXR Six Band EQ has been upgraded with noise-reduction circuitry, true bypass switching, brighter LEDs for increased visibility, and a lightweight aluminum housing. It covers all the essential guitar frequencies, with each slider ready to deliver +/-18dB of cut or boost for incredible control over your sound. The Six Band EQ can create scooped-mid rhythm tones with massive low end, add natural-sounding warmth to a quacky acoustic pickup, eliminate onstage feedback, and much more. You can also use the Six Band EQ in the effects loop of your amp for a huge, sculptable lead boost.
- Input Impedance: 470 kΩ
- Output Impedance: 5 kΩ
- Max Input Level: All Sliders at 0 dB +14 dBV at 1 kHz
- Max Output Level: All Sliders at 0 dB +14 dBV at 1 kHz
- Frequency Response: ±1 dB,20 Hz to 20 kHz
- Noise Floor*: -101.7dBv
- Filtering: ±18db at: 100,200, 400, 800, 1.6K, 3.2K: ±18dB shelf at 16kHz
- Bypass: True Hardwire
- Current Draw: 14.5 mA
Please call, chat, or email for more information.
