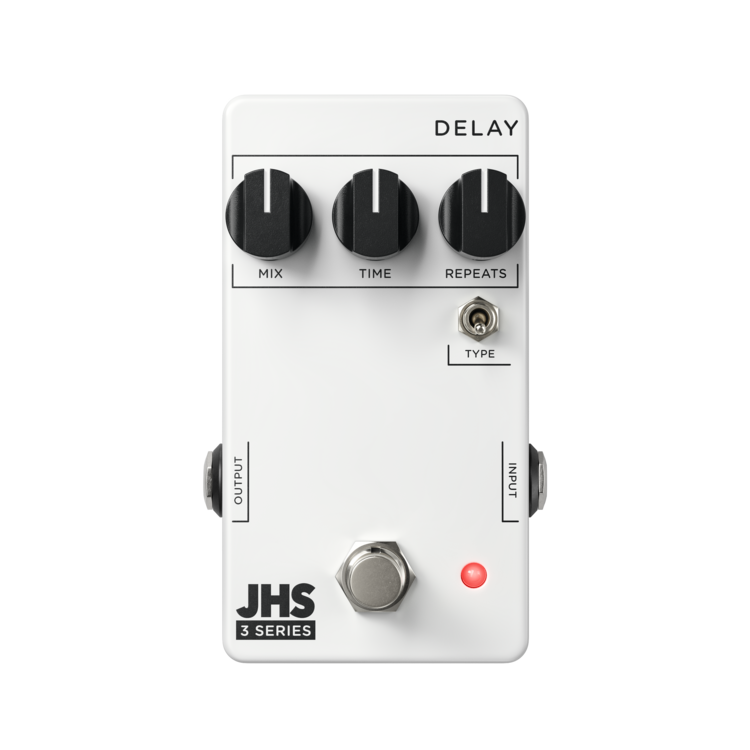

JHS 3 Series Delay Pedal

For your consideration, Garrett Park Guitars presents this JHS 3 Series Delay Pedal.

From the JHS website:

The JHS Pedals 3 Series Delay lets you choose between rich and warm or clear and pristine echoes. The straightforward design is simple and easy to use while offering a huge range of options. The Delay gives you 80ms to 800ms of delay time, for everything from slapback to long ambient washes of pad-like echo. The Type toggle allows you to select between a clearer digital-voiced delay and darker analog-voiced delay. The Delay will give you classic bucket brigade runaway when you max out the Repeats knob when in the analog-voiced delay mode. The JHS Pedals 3 Series Delay runs on 9V DC Negative Center power and consumes 71mA.

Specifications:  The JHS Pedals 3 Series Chorus runs on 9V DC Negative Center power and consumes 70mA.

Size:

• LENGTH 4.42”
• WIDTH 2.38”
• HEIGHT 1.22

CONTROLS

• CONTROLS MIX - Controls the volume of the repeats. Left is less, right is more.
• TIME - Controls the length of the delay from 80ms to 800ms. Left is shorter,right is longer.
• REPEATS - Controls the amount of feedback or repeats of the delay signal. Left is less, right is more.
• TYPE TOGGLE - Gives you two different types of delay. Down is an analog voiced delay that also has true analog runaway sounds when the Repeats are turned up. Up is a digital voiced delay for crisp and clean repeats.

JACKS

JACKS INPUT - 1/4” jack on the right side of the pedal.

OUTPUT - 1/4” jack on the left side of the pedal. POWER - Requires 9V DC negative center power and consumes 71mA. Do not use more than 9V DC. You will void your warranty.
