Dunlop

MXR M82 Bass Envelope Filter

Regular price $ 169.99 USD
Regular price Sale price $ 169.99 USD
Sale Sold out
Shipping calculated at checkout.

For your consideration, Garrett Park Guitars presents this MXR M82 Bass Envelope Filter.

The Bass Envelope Filter delivers classic analog envelope filter sounds with separate Dry and Effect level controls to keep your low end intact.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

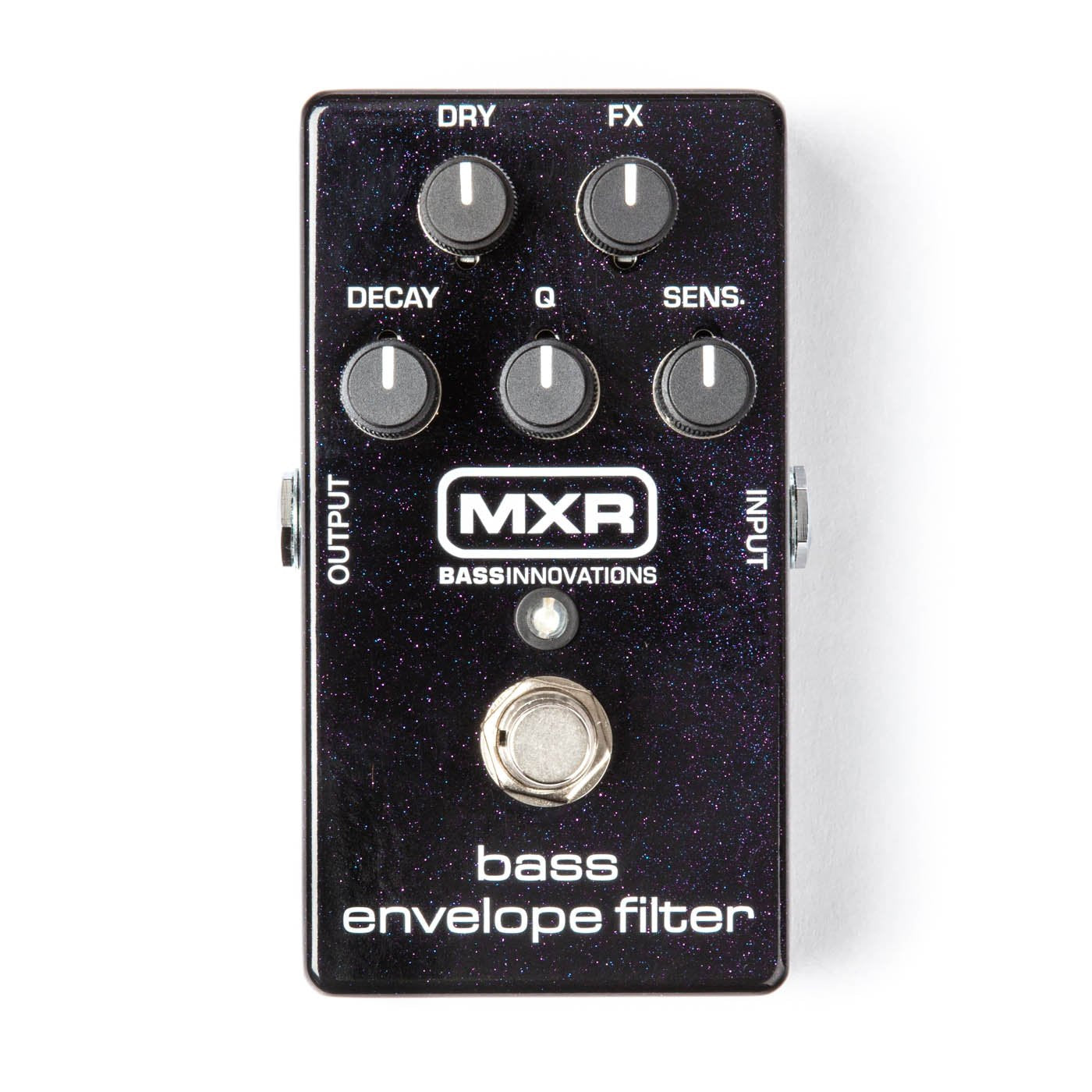

Controls -

  • Dry knob controls volume of unaffected signal
  • FX knob controls volume of envelope filter signal
  • Decay knob sets envelope filter’s decay stop frequency
  • Q knob controls intensity of effect
  • Sens. knob adjusts the sensitivity of envelope filter to your attack
  • Footswitch toggles effect on/bypass (blue LED indicates on)

Specifications -

  • Input Impedance: 1 MΩ
  • Output Impedance: 100 Ω
  • Max Input Level*: -15 dBV
  • Max Output Level: +8 dBV
  • Noise Floor*: -94 dBV
  • Filter Sweep: (fc) 76 Hz to 3.2 kHz
  • Sensitivity Range: 46 dB
  • Max Sensitivity: at 500 Hz
    • fc = 3.2 kHz -23 dBV
    • fc = 100 kHz -39 dBV
  • Decay Stop Freq. : 76 Hz to 1.3 kHz
  • Filter Gain: at fc
    • Q Min, fc = 76 Hz +8 dB
    • Q Max, fc = 76 Hz +18 dB
    • Q Min, fc = 3.2 kHz +8 dB
    • Q Max, fc = 3.2 kHz +26 dB
  • FX Range**: -∞ to 0 dB
  • Dry Range: -∞ to +6 dB
  • Bypass: True Hardwire
  • Current Draw: 6 mA
  • Power Supply: 9 volts DC
For more information please call, chat, or email.
