MXR Custom Badass Modified OD - M77 - Overdrive Pedal
For your consideration, Garrett Park Guitars presents this MXR Custom Badass Modified OD - M77 - Overdrive Pedal.
This pedal truly has a badass drive tone unlike other OD pedals. We love it at Garrett Park Guitars!
This pedal features a classic overdrive circuit that's been upgraded with a 100HZ control and a Bump switch for improved performance and versatility.
From the MXR website:
THE LONG STORY
The Custom Badass Modified O.D. features a classic overdrive circuit with modern modifications for improved performance and versatility.
For added flexibility, we’ve added a 100HZ cut and boost control that allows for a more focused EQ when cut, or a beefier tone when boosted. The Bump switch engages an alternate EQ voicing that boosts the lows and mids. Put it in front of the ’78 Custom Badass Distortion for a slew of amp-like gain structures that won't mask your tone.
Input Impedance 1 MΩ
Output Impedance <7.5 kΩ
Noise Floor* >87 dB
Tone Control ± 8 dB at 2.7 KHz
100HZ Control ± 24 dB at 100 Hz
Bump Button +6 dB low ~ mid boost
-3 dB at 540 kHz
Gain Control ± 25 dB range at 100 Hz
Bypass True Hardwire
Power Draw <4 mA
Power Supply 9 volt DC

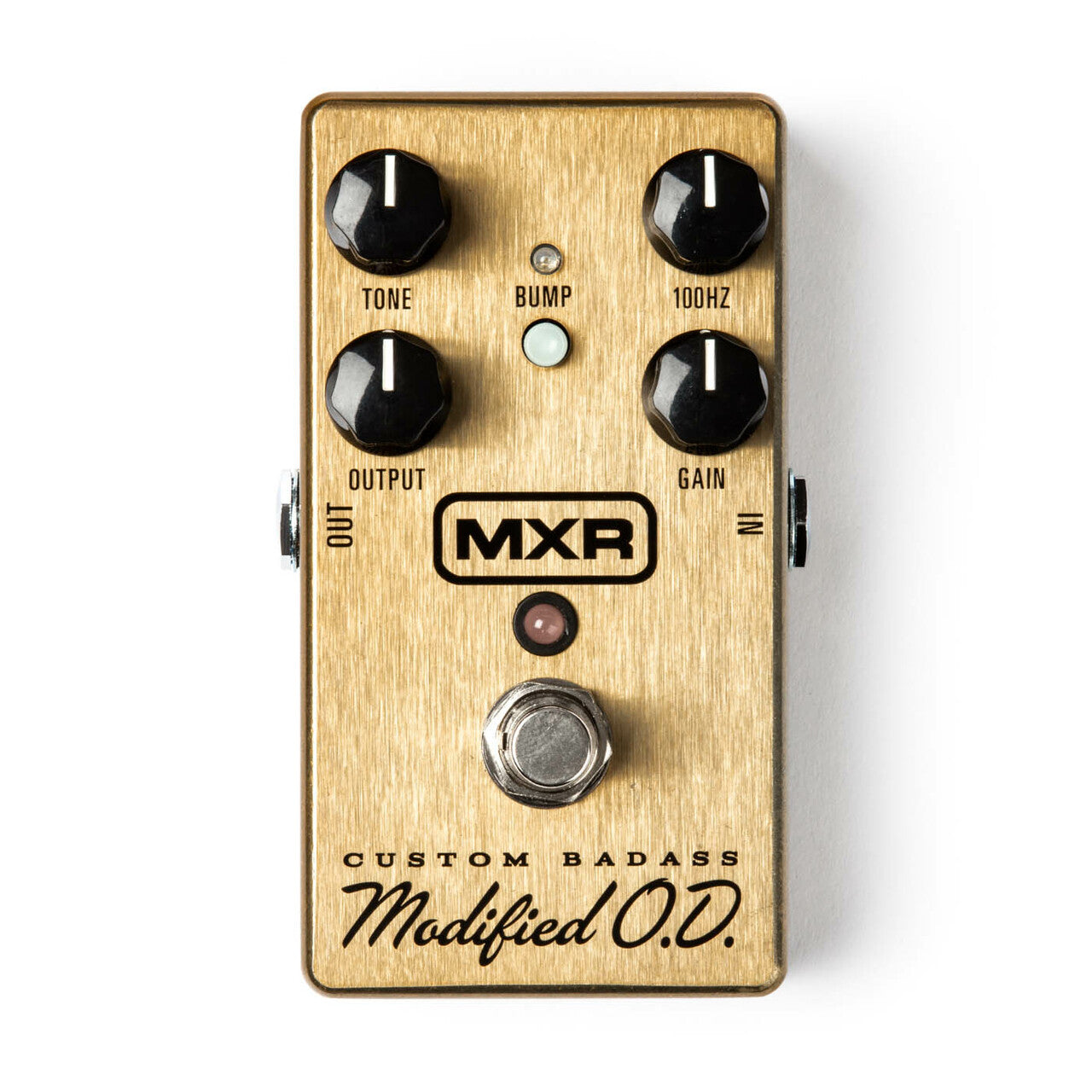

TONE knob shapes overall EQ 100HZ knob cuts/ boosts at 100 Hz
BUMP switch boosts lows and mids (indicated by blue LED)
OUTPUT knob controls overall effect volume
GAIN knob controls the amount of overdrive
6 FOOTSWITCH toggles effect on/bypass (red LED indicates on)
Please call, chat, or email for more information.
