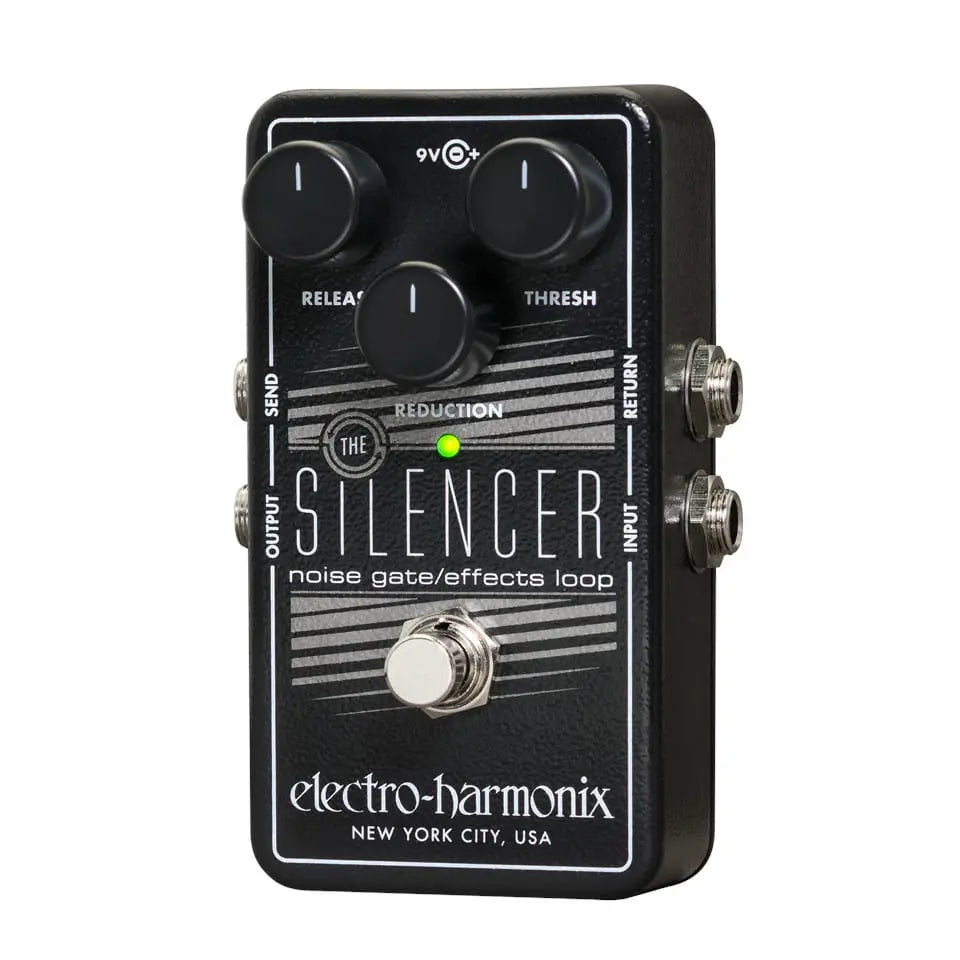

A sophisticated noise gate that can tame a single pedal or an entire effects loop! The EHX Silencer’s three-control layout provides precise fine-tuning to fit your system, axe, and playing style. The threshold control adjusts how much level is required to open the noise gate and allow a signal to pass thru. Reduction regulated the degree to which the gated signal is reduced and is variable between -70dB and +4dB. Release controls how long the gate remains open after the signal drops below the Threshold. Release time is variable between 8ms and 4 seconds.
I/O includes ¼ inch Input, Output, Send, and Return jacks. The footswitch selects whether The Silencer is engaged or in bypass mode; buffered bypass allows the effects loop to remain in your signal path when the gate is bypassed. A built-in AC jack accepts a standard power supply like the EHX 9.6DC unit (optional) and the pedal comes with a 9V battery.
- Three controls for precise fine-tuning
- Use it as an inline noise gate or to gate an entire effects loop
- Delivers up to -70dB of noise reduction
- Features 8ms to 4 seconds of release time
- Buffered bypass
- Compact design, rugged chassis
- 9V battery included
SPECIFICATIONS
Circuit - Analog
Bypass - Buffered Bypass
Audio - Mono
Effects Loop - Yes
Power Supply - 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in) - 4.5 x 2.75 x 2.1
Current Draw - 22mA
